ANALYSETTE 22 NeXT – Medidor de Partículas análise automática do tamanho das partículas de forma imbatível e simples
Nossos dois modelos do ANALYSETTE 22 NeXT são ideais para análise granulométrica eficiente na produção e controle de qualidade, bem como em pesquisa e desenvolvimento ou para controle de processos de fabricação.
Ambos os analisadores de partículas diferem na conceção e na faixa de medição.
O ANALYSETTE 22 NeXT Micro, que tem apenas uma fonte de luz e um detector, mede de forma robusta e confiável de 0,5 a 1500 μm.
O ANALYSETTE 22 NeXT Nano expande o valor de medição inferior através da disposição inteligente de um sistema de detecção adicional. Isto torna possível o registo de ângulos de dispersão ainda maiores até 0,01 μm, tanto na direção lateral quanto na direção inversa. O limite superior de medição é aumentado ao mesmo tempo para uns excelentes 3800 μm.
Obtenha todas as vantagens com o modelo que melhor se enquadra às suas exigências: muito fácil operação e limpeza, curtos tempos de análise, resultados reprodutíveis de forma confiável e o registo de parâmetros adicionais, como temperatura e valor de pH durante a dispersão úmida. Tecnologia de última geração a um preço imbatível. Feito de forma inteligente!
Escolha de acordo com as suas necessidades
OUTROS EQUIPAMENTOS DE MEDIÇÃO DE PARTÍCULAS
Laser Particle Sizer
ANALYSETTE 22
NeXT NanoEach measuring unit ANALYSETTE 22 NeXT Nano with USB-Interface, is delivered with a computer* with already installed software MaS control, monitor, keyboard and mouse.
*without computer hardware for deliveries in CIS countries
Choose accessories exactly to your requirements
We offer a wet dispersion unit which for most samples represents the ideal method of preparation for particle size measurement.
Additionally, you can select an ultrasonic box, reference materials and certificates and spare parts for the wet dispersion unit.
For representative sample division - the foundation of any precise analysis - we recommend the
Rotary Cone Sample Divider LABORETTE 27
Wet dispersion unit and accessories
For most samples, wet dispersion represents the ideal method of preparation for particle size measurement. For this reason, we offer a quite powerful, flexible and modular wet dispersion system.
For working with extremely aggressive chemical dispersion liquids, order the wet dispersion unit with the conversion kit Extended for extreme chemical resistance.

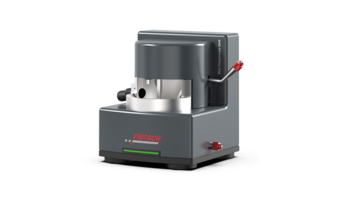

Wet Dispersion Unit and accessories

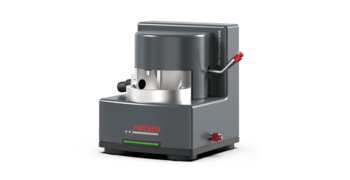

Automatic dispersion unit, volume 150-500 ml, suitable for most samples.
A powerful centrifugal pump with individually adjustable speed ensures stable measuring in the dispersion unit of the ANALYSETTE 22 NeXT. It also transports heavy particles and facilitates a fast and uniform distribution of the sample material in the entire circulation system. Standard programs for simple operation, freely programmable dispersion process, an especially fast and efficient automatic cleaning and many other advantages also simplify your work. And ensure the quality of your measuring results.
Read details about our Wet Dispersion Unit here
for wet dispersion unit consisting of seals, flow plate and hoses
The conversion kit Extended for extreme chemical resistance consists of seals and flow plate made of FFKM Kalrez® – the hoses are made of LEZ SAN®.
If you are working with extremely aggressive chemical dispersion liquids, you can order the wet dispersion unit with this conversion kit for extreme chemical resistance.
If you already have an instrument, you can order the conversion kit separately to retrofit your equipment.
A list providing an overview of chemicals can be downloaded here:
List of suitable chemicals
Ultrasonic Boxes and Accessories
Our powerful ultrasonic box is simply inserted into the sample circulation system. We offer two models with differnt voltages.
Ultrasonic Boxes and accessories
for dispersion with ultrasonic with max. 50 Watt ultrasonic output,
variably adjustable for 200-240 V/1~, 50-60 Hz, 60 Watt
If you measure sample material frequently that tends to agglomerate, you can equip your ANALYSETTE 22 NeXT additionally with a powerful ultrasonic box which is simply inserted into the sample circulation system. It allows for an even finer adjustment of the wet dispersion to the respective sample material and operates extremely quietly with less than 45 dB.
for dispersion with ultrasonic with max. 50 Watt ultrasonic output,
variably adjustable for 100-120 V/1~, 50-60 Hz, 60 Watt
If you measure sample material frequently that tends to agglomerate, you can equip your ANALYSETTE 22 NeXT additionally with a powerful ultrasonic box which is simply inserted into the sample circulation system. It allows for an even finer adjustment of the wet dispersion to the respective sample material and operates extremely quietly with less than 45 dB.
for wet dispersion unit with ultrasonic box consisting of seals, flow plate and hoses
The conversion kit Extended for extreme chemical resistance consists of seals and flow plate made of FFKM Kalrez® – the hoses are made of LEZ SAN®.
If you are working with extremely aggressive chemical dispersion liquids, you can order the wet dispersion unit with this conversion kit for extreme chemical resistance.
If you already have an instrument, you can order the conversion kit separately to retrofit your equipment.
A list providing an overview of chemicals can be downloaded here:
List of suitable chemicals
Reference materials and certificates
To inspect your Particle Sizer to ensure proper function, various reference materials can be used for a reliable check of the system. The reference materials offered by FRITSCH are delivered along with precise dispersion and measurement instructions and are accompanied by a certificate containing the upper and lower limits of the expected particle sizes. These limit values were determined using an internationally recognised process (NIST-traceable).
Certified reference materials (NIST-traceable) for performance verification according to ISO 13320
Test powder for wet dispersion, 10 - 100 µm (Box with 10 single-shots 0.5 g), certified reference material for performance verification of the FRITSCH Laser Particle Sizers ANALYSETTE 22, which are used for wet dispersion and for calibration according to ISO 13320 in regard to repeatability and reproducibility.
The test powder for wet dispersion is delivered in a box with 10 single-shots 0.5 g.
Also test suspensions for the inspection of the measurement precision are offered.
Test suspension nano (approx. 200 nm) for system check (box with 10 single-shots 5 ml) for the inspection of the measurement precision of the FRITSCH Laser Particle Sizers ANALYSETTE 22, which are used for wet dispersion.
The test suspension nano for system check for wet dispersion is delivered in a box with 10 single-shots 5 ml.
Additional test suspensions for inspection of the measurement precision, as well as test powders for the calibration of the Laser Particle Sizers ANALYSETTE 22 NeXT according to ISO 13320 in regard to repeatability and reproducibility are also offered.
Test suspension 1 µm for system check (Box with 10 single-shots 5 ml) for inspection of the measurement precision of the FRITSCH Laser Particle Sizers ANALYSETTE 22, which are used for wet dispersion.
The test suspension 1 µm for system check for wet dispersion is delivered in a box with 10 single-shots 5 ml.
Additional test suspensions for inspection of the measurement precision as well as test powders for the calibration of the Laser Particle Sizers ANALYETTE 22 according to ISO 13320 in regard to repeatability and reproducibility are also offered.
Test suspension 10 µm for system check (Box with 10 single-shots 5 ml) for inspection of the measurement precision of the FRITSCH Laser Particle Sizers ANALYSETTE 22, which are used for wet dispersion.
The test suspension 10 µm for system check for wet dispersion is delivered in a box with 10 single-shots 5 ml.
Additional test suspensions for inspection of the measurement precision, as well as test powders for the calibration of the Laser Particle Sizers ANALYSETTE 22 according to ISO 13320 in regard to repeatability and reproducibility are also offered.
FRITSCH reference materials according to ISO 13320
For calibration of the Laser Particle Sizers ANALYSETTE 22 for wet dispersion within the framework of a test equipment monitoring system as per ISO 13320.
The cost-efficient alternative (non-certified reference materials) for regular inspection of your Laser Particle Sizers ANALYSETTE 22.
The FRITSCH-test powder F-500, 0.5 - 50 µm is delivered in a handy 50 g bottle.
Certification
Set of IQ/OQ blank forms (questionnaire format – implementation by customer – standards not
included).
Certificates for testing according to ISO 13320 on request.
Spare parts for wet dispersion unit
Spare parts for the wet dispersion unit like measuring cell glass and seal sets.
Spare parts
Replacement flow measuring 4 mm cell for inserting into the flow measuring cell of the wet dispersion unit 22.9200.00.
Easy cleaning and exchange of the measuring cell The measuring cell of the ANALYSETTE 22 NeXT is simply inserted from the front into the instrument as a practical cartridge and can be opened without tools with an eccentric lock. Its cleaning is quite convenient by an easily re-insertable outer seal. And also the exchange of the measuring cell glasses can be done any time completely uncomplicated.
The replacement seal set standard for flow measuring cell consists of seals and flow plate made of Viton® and is suitable for the flow measuring cell of the wet dispersion unit order no. 22.9200.00.
The replacement seal set Extended for extreme chemical resistance for flow measuring cell consists of seals and flow plate made of FFKM Kalrez® and is suitable for the flow measuring cell of the wet dispersion unit order no. 22.9200.00.
