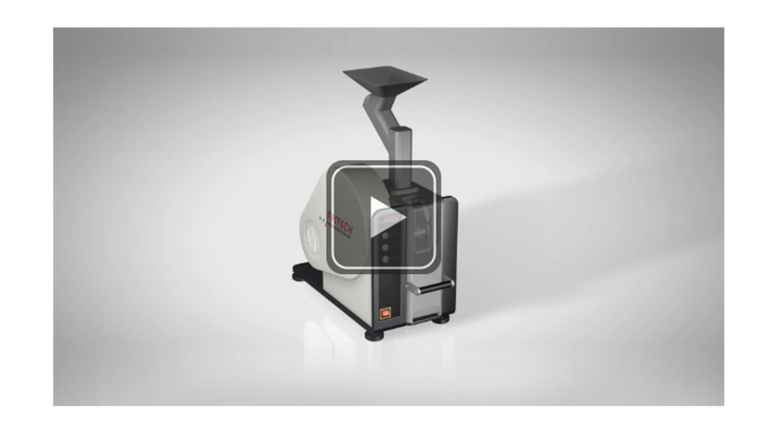

Jaw Crusher
PULVERISETTE 1
premium lineThe extra powerful premium pre-crusher
The extra powerful FRITSCH Jaw Crusher PULVERISETTE 1 premium line with its up to 3 kW drive power ensures an exceptionally high throughput and is the ideal instrument for fast and effective pre-crushing - batchwise or continuous – of hard or very hard brittle materials even hardest ferrous alloys!
The FRITSCH Jaw Crusher PULVERISETTE 1 premium line is ideal for a max. feed size of 95 mm and a max. continuous throughput of up to 250 kg/h depending on the material and gap setting.
Powerful pre-crushing
The powerful comminution of the sample takes place in the Jaw Crusher under high pressure between one fixed and one movable crushing jaw in an enclosed grinding chamber. The gap adjustment is defined with millimetre accuracy from the outside, simply by adjusting the distance between the crushing jaws. The ground sample automatically falls downward – into a drawer for batchwise comminution or via a chute into a larger collection container for continuous operation or directly into a FRITSCH Disk Mill PULVERISETTE 13 premium line for further comminution.
Unique kinematics with fast change: Only the FRITSCH Jaw Crusher PULVERISETTE 1 premium line offers easy, fast and convenient change of the kinematics without altering the gap adjustment. Simply select between the settings specified on the instrument “Eccentricity normal” provides the fastest possible comminution due to the approximately circular oscillation of the crushing jaws. Choose “Eccentricity small” to achieve a narrow particle size range through up and down shearing motions. As a result, the PULVERISETTE 1 premium line can be adapted to the breaking characteristics of the respective sample with one simple motion.
Configure your Jaw Crusher PULVERISETTE 1 premium line exactly to your specific application
The crushing jaws and support walls of the FRITSCH Jaw Crusher PULVERISETTE 1 premium line are available in 6 different materials to prevent undesired contamination due to material abrasion. The standard version is equipped with fixed and movable crushing jaws as well as lateral support walls made of tempered steel.
View extensive accessories
The premium combination for integrated pre- and fine grinding
For especially fast continuous premium pre- and fine-grinding of large quantities of coarse material, the combination of the Jaw Crusher PULVERISETTE 1 premium line and the Disk Mill PULVERISETTE 13 premium line is the ideal solution. Together, they form an efficient, heavy-duty, high-performance grinding instrument with integrated Riffle Sample Splitter. This gives you the full range of opportunities for optimal sample preparation with a feed size of up to 95 mm and final fineness of down to 0.05 mm – all in a single step.
Read details about the combination of PULVERISETTE 1 premium line und Disk Mill PULVERISETTE 13 premium line
