Heavy Duty Analytical Sieve Shaker

ANALYSETTE 18

Nº de encomenda
18.3020.00
Caracteristicas técnicas



AT A GLANCE

  • Dry and wet sieving
  • Automatic sieve evaluation with software AUTOSIEVE
  • Usable as testing equipment in accordance with DIN EN ISO 9001
  • Three-dimensional sieving action

Ideal for

  • SIEVING
  • MEASURING THE QUANTITATIVE
  • PARTICLE SIZE DISTRIBUTION OF
  • SOLIDS AND SUSPENSIONS
  • SEPARATING
  • FRACTIONING
  • Overview

    Effective sieving of large quantities

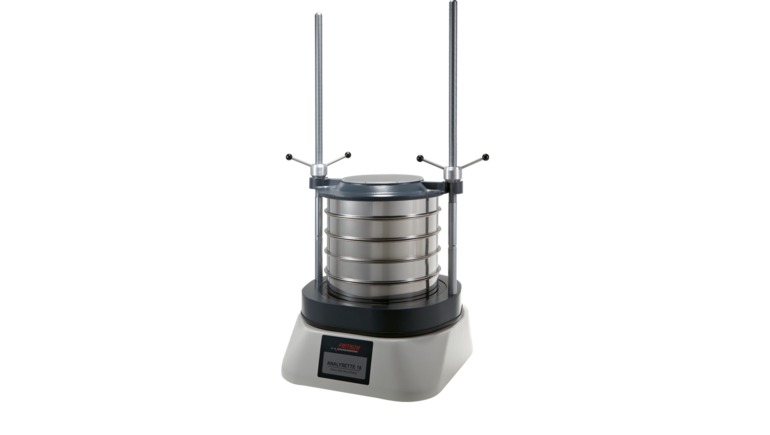

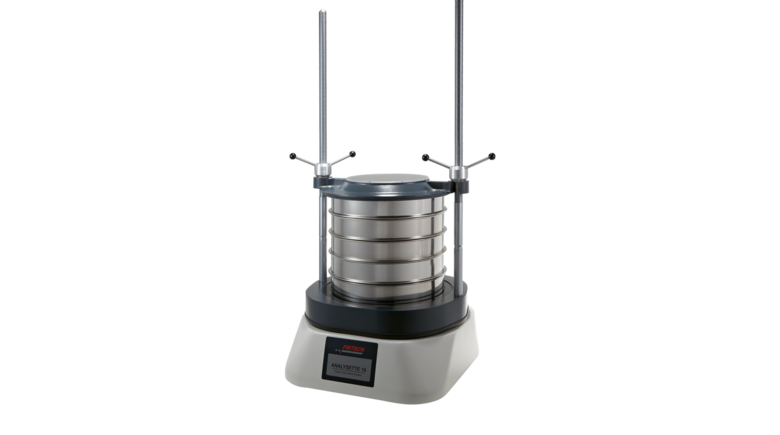

    The ANALYSETTE 18 is the robust, Heavy Duty Analytical Sieve Shaker from FRITSCH. It can effortlessly sieve up to 15 kg of material between 20 μm and 125 mm. The three-dimensional sieving motion ensures particularly fast sieving results without manual re-sieving, and also optimal reproducibility.
    The ANALYSETTE 18 is used for particle size analysis and portioning of coarse-grained materials. The maximum input quantity of 15 kg for the material to be sieved and the sieve stack also allows use in pilot line production or for serial analysis of large quantities.
    It is particularly suitable for particle size analysis and portioning of coarse-grained materials through dry sieving or wet sieving with conversion kit.

  • WORKING PRINCIPLE

    The ANALYSETTE 18 is a Heavy Duty Analytical Sieve Shaker that was specially designed for processing of large sieving quantities. It intentionally avoids the disadvantages of lighter sieve shakers in which the sample and sieve weights can sometimes significantly affect the sieving results. Two unbalanced motors situated in phase opposition under exactly defined angles create optimal vibrations of the test sieves mounted to the sieve plate. After elapsing of the sieve time, both motors are precisely braked.
    With this construction the sieving material is not only accelerated vertically, but also horizontally. This three-dimensional sieving action ensures a permanent change of direction of the material. This results in a short sieving time and increased separation efficiency without manual re-sieving and optimal reproducibility.

  • FEATURES
    • Material quantity up to 15 kg in a measurement range of 20 µm - 125 mm
    • Three-dimensional sieving action for fast sieving results, without manual re-sieving, optimal reproducibility
    • Conversion kit for wet sieving
    • Universal support plate for sieves dia. 300, 315, 350, 400, 450 mm respectively 12" - 18" (adapter for sieves 200 mm respectively 8dia. required)
    • Automatic amplitude control with continuous acceleration measurement of the whole sieve stack
    • Operation by remote control via a separate, handy operating unit
    • TwinNut fastening system for sieves and clamping lid ensure constant tensioning pressure and stability

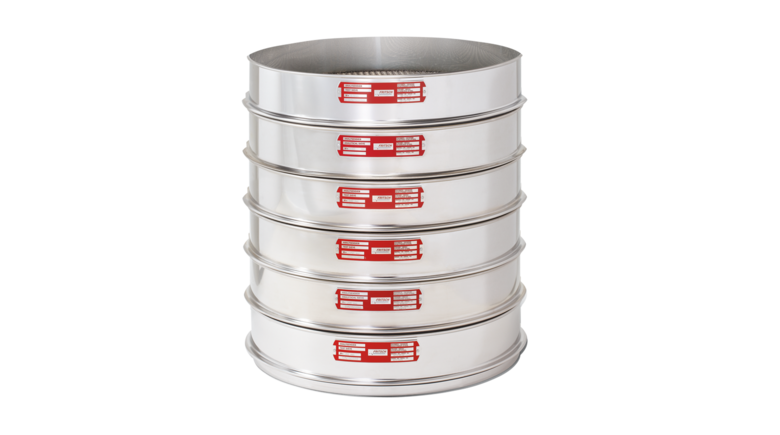

    • Up to 12 test sieves (65 mm height) with sieve pans and lid can be used per working cycle
    • Multilingual AUTOSIEVE programme for automatic evaluation, monitoring, documentation of results
    • Sieves can be calibrated according to ISO 9001
    • Robust design for heavy-duty operating conditions
    • Two maintenance-free unbalanced motor
    • Sieves in mesh widths available from 20 µm to 125 mm according to ISO 3310-1, ASTM E-11-1995

    View extensive accessories

  • Software AUTOSIEVE

    For automatic evaluation of your sieving results

    The multilingual software AUTOSIEVE for automatic evaluation, simple monitoring and documentation of your sieving results can be downloaded here and tested non-binding and free of charge for 90 days.
    All you have to do is to connect a analysis balance and then weigh the sieves before and after sieving using differential weighing. AUTOSIEVE will do the rest. The software enables the simple saving and retrieving of empty sieve weights, both of single sieves and complete sieve sets.

    Details AUTOSIEVE

  • EQUIPMENT / ACCESSORIES

    Everything you need for sieving

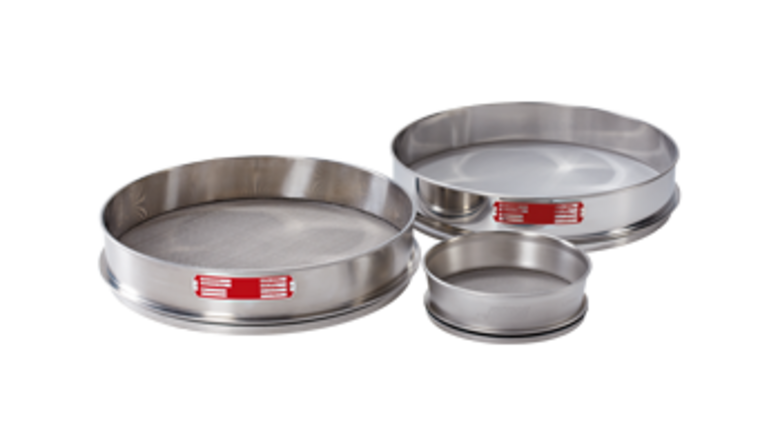

    The Heavy Duty Analytical Sieve Shaker ANALYSETTE 18 is delivered incl. tensioning, clamping lid for dry sieving and software AUTOSIEVE (90 day test version free of charge), but does include not test sieves or sieve pan, which are offered in various designs and must be ordered as accessories.
    Also available is a conversion kit for dry sieving.

    View extensive accessories

  • Applications / Solutions

    • Pigment processing: The isolation of the naturally beautiful

      Mankind has always enjoyed enduring works of art. The particles of the pigments have always been playing a major role. For example, the oldest cave paintings still impress us today. One of the most renowned experts for the production of historical pigments is Dr. Kremer from Aichstetten (Bavaria, Germany). FRITSCH laboratory mills are of great importance in Dr. Kremer's pigment processing.
