Disk Mill

PULVERISETTE 13

premium line

Pressure and shearing action

In the Disk Mill, the material to be ground is comminuted by pressure and shearing action between two counteracting grinding disks with coarse interlocking teeth. The ground material automatically falls down through the pre-set grinding gap into the collection drawer. The desired final fineness can be defined reproducibly by simply adjusting the digital setting of the gap width.

• Feed size up to 20 mm
• Max. throughput up to 150 kg/h with extra powerful motor
• Fine grinding 0.05 mm
• Rotational speed grinding disk 440 rpm
• Precise motor-driven adjustment of distance between grinding disks of up to 50 µm accuracy
• Automatic safety locks for clamping the lock and grinding chamber drawer

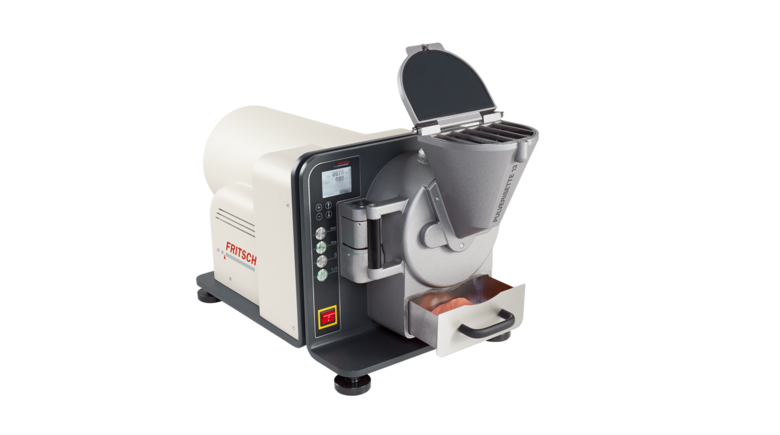

• Easy cleaning and optimal material feeding due to large removable plastic funnel
• Clean Design: smooth grinding chamber inner surfaces and labyrinth sealing of grinding chamber ensure a fast cleaning and protection against contamination of the sample
• Dust-free grinding due to connection of dust exhaust system and special sealing of drawer
• Motor-driven zero-point adjustment for compensating wear on grinding disks and precise re-adjustment after replacement
• Longer service life of grinding disks via the control display
• Easy change of the grinding disks
• Combinable with the Jaw Crusher PULVERISETTE 1 premium line

View extensive accessories

Easy operation – fast and efficient
The grinding chamber is locked at the push of a button and the grinding gap and grinding time are set precisely and to the second using the plus/minus keys on the digital display. Fill the sample into the easily closable funnel and start grinding. The last setting is saved and can accessed directly for the next grinding.

Especially precise motor-driven adjustment of the distance between the grinding disks without crank
The grinding gap can be conveniently adjusted with accuracy of 50 μm by means of the plus/minus buttons on the digital display. For reproducible results that are absolutely reliable.

Especially convenient motor-driven zero-point adjustment
For regularly compensating wear on the grinding disks and for easy precise re-adjustment after replacement.

Fast, residue-free cleaning
The completely accessible grinding chamber, the Clean Design with smooth grinding chamber inner surfaces and additional labyrinth sealing of the grinding chamber and the removable funnel - saves time and provides effective contamination protection for your samples.

Longer service life for grinding disks
With the control display, it is easy to prolong the service life of the grinding disks: simply change the rotational direction (clockwise/anti-clockwise) of the grinding disks to optimally compensate the abrasion behaviour.

Especially easy change of the grinding disks
In the PULVERISETTE 13 premium line, both the fixed and the movable grinding disks are easily accessible for fast, simple replacement. For the disk change, the disk is simply driven forward by the motor, allowing the retaining screws to be easily loosened.

Configure your Disk Mill PULVERISETTE 13 premium line exactly to your specific application

For every FRITSCH Disk Mill PULVERISETTE 13 premium line, you need at least one fixed and one movable grinding disk. These are available in 4 different materials. Normally, two grinding disks of the same material are selected which must always be harder than the sample to be ground.

Metal-free grinding

Ideal for medical and dental engineering: On request, we can equip your PULVERISETTE 13 premium line with a complete polymer interior coating together with grinding disks made of zirconium oxide – the perfect pre-requisite for grinding without any contact of the sample with metal.
View extensive accessories

The premium combination for integrated pre- and fine-grinding

For especially fast continuous premium pre- and fine-grinding of large quantities of coarse material, the combination of the Disk Mill PULVERISETTE 13 premium line and the Jaw Crusher PULVERISETTE 1 premium line is the ideal solution. Together, they form an efficient, heavy-duty, high-performance grinding instrument with integrated Riffle Sample Splitter. This gives you the full range of opportunities for optimal sample preparation with a feed size of up to 95 mm and final fineness of down to 0.05mm – all in a single step.
Read details about the combination of Disk Mill PULVERISETTE 13 premium line and Jaw Crusher PULVERISETTE 1 premium line
