Vibratory Sieve Shaker

ANALYSETTE 3 PRO

Nº de encomenda
03.7020.00



AT A GLANCE

  • Dry and wet sieving
  • Automatic sieve evaluation with software AUTOSIEVE
  • Usable as testing equipment in accordance with DIN EN ISO 9001
  • Simple ergonomic operation

Ideal for

  • SIEVING
  • MEASURING THE QUANTITATIVE
  • PARTICLE SIZE DISTRIBUTION OF
  • SOLIDS AND SUSPENSIONS
  • SEPARATING
  • FRACTIONING
  • OVERVIEW

    Precise sieving with automatic amplitude control

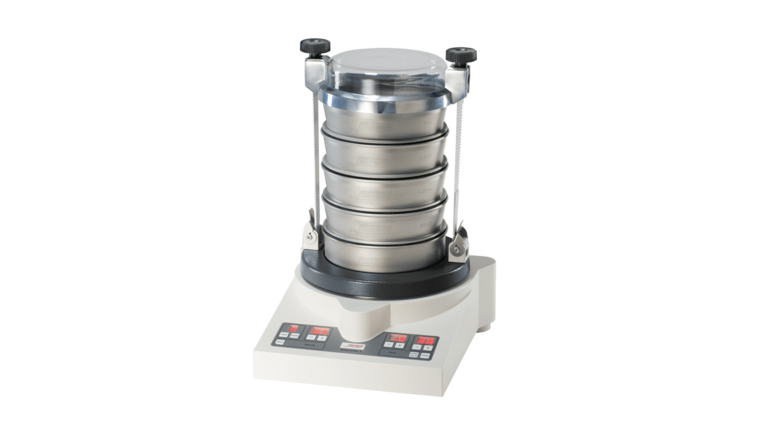

    The high performance Vibratory Sieve Shaker ANALYSETTE 3 PRO offers everything you need for fast determination of quantitative particle size distribution in the laboratory. As a shaking sieve system with an electromagnetic drive oscillates the sieve stack into regulated vertical oscillations, and is the ideal solution for sieving sample quantities up to 2 kg and a measurement range from 20 μm to 63 mm.
    The ANALYSETTE 3 PRO is perfectly suited for fast quality control of incoming and outgoing products, offers user-friendly operation and is low-noise, robust and long-lasting. Perfect for quantitative particle size analysis of solids and suspensions of all kinds through dry or wet sieving with woven test sieves.
    Our top model with automatic amplitude control, programme selection and the ability to be used as a calibratable and validatable test instrument in test equipment monitoring according to ISO 9001 and much more.

  • WORKING PRINCIPLE

    The ANALYSETTE 3 is a “shaking sieve” system in the classic sense in which an electromagnetic drive causes the sieves to oscillate in a vertical direction. The material to be sieved is periodically propelled upward off the sieve fabric and forced through the mesh of the attached test sieve as it falls back down.

  • FEATURES
    • Microprocessor control and digital display of all functions
    • RS232 interface can control all functions - interface and AUTOSIEVE allow inspection of the sieving process via an online comparison of the set and actual amplitude
    • AMPCONTROL for setting guaranteed constant amplitude meaning precisely reproducible sieving results in accordance with DIN 66165-1
    • Programme selection for storing up to 10 individual sieve programmes
    • Intermittent mode for sieving low density voluminous material reducing sieving time
    • Energy-saving mode - the instrument switches automatically to standby
    • Including FRITSCH warp-free EASYTWIST sieve stack tensioner
    • Electric, easy-to-use sieve stack tensioning system TorqueMaster
    • Intelligent wet sieving with wet sieving lid with 2 rotation nozzles
    • Modular system for wide-ranging application options
    • Convertible to Vibratory Micro Mill PULVERISETTE 0
    • Optimum power consumption prevents warming up of the sieving system
    • Sieving parameters are entered via ergonomically installed soft touchpad with digital display
    • Up to 10 test sieves can be used simultaneously per working cycle – allowing up to 5 sieving operations to be performed at the same time

    View extensive accessories

  • Software AUTOSIEVE

    For automatic evaluation of your sieving results

    The multilingual software AUTOSIEVE for controlling the ANALYSETTE 3 PRO and for automatic evaluation, simple monitoring and documentation of your sieving results can be downloaded here and tested non-binding and free of charge for 90 days.

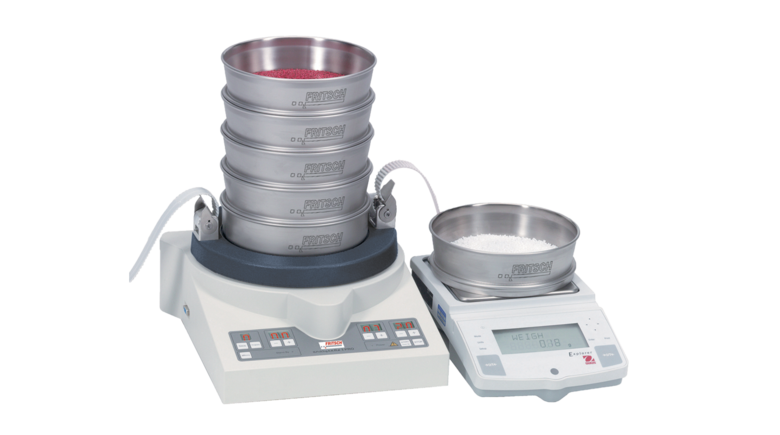

    All you have to do is to connect a laboratory analysis balance (like for example the laboratory analysis balance up to 4.1 kg, order no. 03.2600.00) and then weigh the sieves before and after sieving using differential weighing. AUTOSIEVE will do the rest. The software enables the simple saving and retrieving of empty sieve weights, both of single sieves and complete sieve sets.

    FRITSCH Advantage: By utilizing the software AUTOSIEVE all functions such as amplitude, sieving time, intermittent mode and type of sieving can be entered comfortably via the computer.

    Details AUTOSIEVE

  • YOUR SIEVE SHAKER BECOMES A MILL

    Sieving and comminution in one unit

    With just a few motions, your Sieve Shaker can be transformed into the Vibratory Micro Mill PULVERISETTE 0 for grinding and homogenising small sample quantities (filling volume 1 to 10 ml, feed particle size < 5 mm). And with the special FRITSCH cryo-box, grinding is even possible at low temperatures with liquid nitrogen.

    Details about the PULVERISETTE 0

  • EQUIPMENT / ACCESSORIES

    Everything you need for sieving

    The Vibratory Sieve Shaker ANALYSETTE 3 PRO is delivered incl. tensioning and the software AUTOSIEVE (90 day test version free of charge), but it does not include clamping lid, test sieves or sieve pan, which are offered in various designs and must be ordered as accessories.

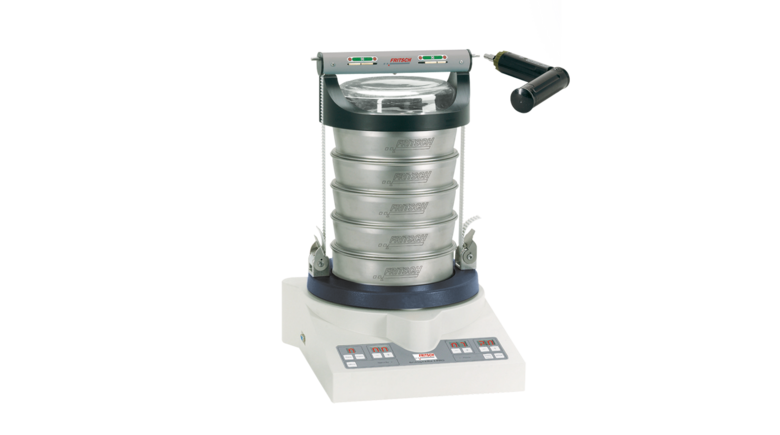

    Also available as an accessory is the universal sieve tensioning system TorqueMaster for automatic and reproducible tensioning of the sieve stack on the Sieve Shaker.

    View extensive accessories

Nº de encomenda
03.7020.00
