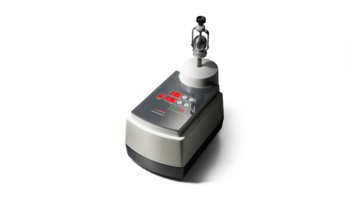

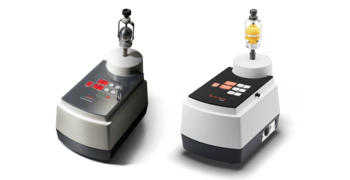

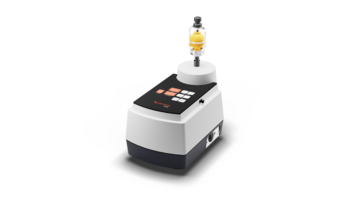

Mini-Mill

PULVERISETTE 23

Nº de encomenda
23.1000.00
Acessórios

Please note: For the Mini-Mill you require 1 grinding bowl and the corresponding number of grinding balls. To avoid undesired contamination of the sample through abrasion, we offer a selection of 3 different material types. Normally, grinding bowls and balls of the same material are used. In principle, the grinding bowl material must be harder than the material to be ground.
Grinding bowls and grinding balls made of zirconium oxide for absolute metal-free grinding are also offered. Important: please keep in mind the specified useful capacity as this is not identical to the bowl volume.

GRINDING BOWLS

Ajuda de seleção

  • Material data for the grinding bowls/balls

    Material Main component of the material Density g/cm³ Abrasion resistance Used for grinding material
    Zirconium oxide ZrO2 5.7 very good Fibrous, abrasive samples
    Hardened, stainless steel Fe – Cr 7.7 good Hard, medium-hard, brittle samples
    PTFE CxF2x 2.16 sufficient Frozen tissue samples
    Grinding bowl/
    Useful capacity (sample volume)
    30 ml
    1 – 15 ml
    15 ml
    0.5 – 5 ml
    10 ml
    0.2 – 1 ml
    5 ml
    0.1 – 1 ml
    Balls diameter
    15 mm 4 2 1
    10 mm 12 5 3 1
    5 mm 100 60 30 20
    1 mm 1 per tube
  • Additional Information

    The specified ball filling per bowl is the minimum quantity and should possibly be increased depending on the material properties. The useful capacity depends on the type of material. In exceptional cases, the number of grinding balls can be reduced by up to 15 %. However, increased abrasion should be expected. In general, smaller grinding balls achieve finer grinding results.

    Normally, grinding bowls and balls of the same material are used. In principle, the grinding bowl materials must be harder than the material to be ground. Important: Pay attention to the specified useful capacity as this is not identical to the bowl volume!

    It may also be useful to work here with grinding balls ≤ 3 mm diameter. We have not listed these here because we would like to advise you regarding your application. Please contact Mr. Benes our laboratory supervisor.

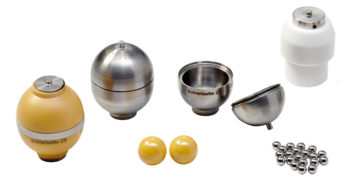

Various grinding bowls made of different materials for the Fritsch Mini-Mill Pulverisette 23

Please select 1 grinding bowl, which is offered in the sizes 30 ml, 15 ml, 10 ml and 5 ml or the container for single-use tubes to perfectly match your sample volume. The useful capacity of the grinding bowls can be found in the selection aid. For biotechnological use the PTFE bowl 5 ml and for smaller quantities the container for single-use tubes is especially suitable. For best grinding results the grinding bowls are available in different materials thus directly preventing contamination of the samples as a result of undesired abrasion.

SELECT GRINDING BOWL VOLUME

GRINDING BOWL 30 ML

PTFE
N.º 23.1440.00
PTFE 30 ml volume

Grinding bowl with lid and seal ring
Grinding bowl volume: 30 ml
Useful capacity: 1 ... 10 ml
Weight net: 0.072 kg


This special grinding bowl is primarily used to grind organic samples, like for example deep freeze tissue, cells, foodstuffs etc.. The entire bowl can be pre-cooled in liquid nitrogen. Afterwards the sample is subsequently comminuted in sub-zero temperature.


Please keep in mind: A separate bowl holder order no. 23.1441.00 is required for use in the Mini-Mill.


ANÁLISE INDICATIVA
General specifications
Material PTFE
CAS Number9002-84-0
Chemical composition
ElementFormula
PolytetrafluoroethyleneC 2F4
Melting point327° C
Max. application temp. constant260° C
Max. application temp. briefly300° C
Physical and mechanical properties
Density2.16 g /cm³
Ball pressure hardness ISO 868, ISO 2039-2, D 55 Shore
Holder for grinding bowl 30 ml volume
N.º 23.1441.00
Holder for grinding bowl 30 ml volume

Holder for grinding bowl PTFE 30 ml - order no. 23.1440.00

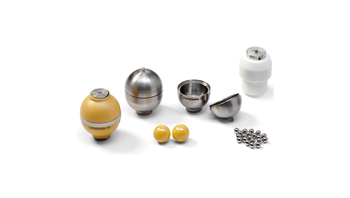

GRINDING BOWL 15 ML

zirconium oxide - ZrO2
N.º 23.1427.00
zirconium oxide 15 ml volume

Grinding bowl with lid and seal ring
Grinding bowl volume: 15 ml
Useful capacity: 0.5 … 5 ml
Weight net: 0.065 kg

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.


ANÁLISE INDICATIVA
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
N.º 23.1409.00
hardened, stainless steel 15 ml volume

Grinding bowl with lid and seal ring
Grinding bowl volume: 15 ml
Useful capacity: 0.5 … 5 ml
Weight net: 0.056 kg

General material specification:
Material: hardened, stainless steel - 1.4125
Abrasion resistance: good
Suitable for: hard, brittle samples
Detailed information about the material you will find in the element analysis.


ANÁLISE INDICATIVA
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data

GRINDING BOWL 10 ML

zirconium oxide - ZrO2
N.º 23.1327.00
zirconium oxide 10 ml volume

Grinding bowl with lid and seal ring
Grinding bowl volume: 10 ml
Useful capacity: 0.2 … 1 ml
Weight net: 0.054 kg

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.


ANÁLISE INDICATIVA
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
N.º 23.1309.00
hardened stainless steel 10 ml volume

Grinding bowl with lid and seal ring
Grinding bowl volume: 10 ml
Useful capacity: 0.2 … 1 ml
Weight net: 0.045 kg

General material specification:
Material: hardened stainless steel - 1.4125
Abrasion resistance: good
Suitable for: hard, brittle samples
Detailed information about the material you will find in the element analysis.


ANÁLISE INDICATIVA
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data

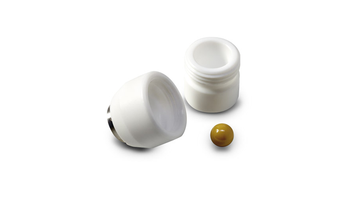

GRINDING BOWL 5 ML

PTFE
N.º 23.1600.00
Grinding bowl PTFE, 5 ml volume

Grinding bowl with lid and seal ring
Grinding bowl volume: 5 ml
Useful capacity: 0.1 … 1 ml
Weight net: 0.050 kg

This special grinding bowl in combination with a 10 mm steel grinding ball is primarily used to grind biological sample, like for example deep freeze tissue, cells, etc.. The entire bowl can be pre-cooled in liquid nitrogen. Afterwards the sample is subsequently comminuted in sub-zero temperature.


ANÁLISE INDICATIVA
General specifications
Material PTFE
CAS Number9002-84-0
Chemical composition
ElementFormula
PolytetrafluoroethyleneC 2F4
Melting point327° C
Max. application temp. constant260° C
Max. application temp. briefly300° C
Physical and mechanical properties
Density2.16 g /cm³
Ball pressure hardness ISO 868, ISO 2039-2, D 55 Shore

Container for single-use tubes

Container for single-use tubes
N.º 23.1700.00
Container for single-use tubes

Container incl. 6 tubes à 0.5 ml, 1.5 ml and 2 ml volume


For grinding extremely small sample quantities, primarily in the biological field. This tube container is available for up to six 0.5 ml, 1.5 ml or 2 ml PCR tubes. The samples to be
tested are usually available in liquid form, can be assessed very quickly and gently in the individual tubes with 1 mm grinding balls.

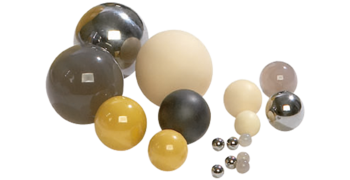

GRINDING BALLS

Ajuda de seleção

  • Material data for the grinding bowls/balls

    Material Main component of the material Density g/cm³ Abrasion resistance Used for grinding material
    Zirconium oxide ZrO2 5.7 very good Fibrous, abrasive samples
    Hardened, stainless steel Fe – Cr 7.7 good Hard, medium-hard, brittle samples
    PTFE CxF2x 2.16 sufficient Frozen tissue samples
    Grinding bowl/
    Useful capacity (sample volume)
    30 ml
    1 – 15 ml
    15 ml
    0.5 – 5 ml
    10 ml
    0.2 – 1 ml
    5 ml
    0.1 – 1 ml
    Balls diameter
    15 mm 4 2 1
    10 mm 12 5 3 1
    5 mm 100 60 30 20
    1 mm 1 per tube
  • Size of the grinding balls

    Type of feed material Ball diameter
    Hard samples with a maximum feed size of 2 - 5 mm 15 mm
    Fine materials 0.5 mm 10 mm or 5 mm
    Homogenisation of dry or liquid samples 10 mm or 5 mm
    Grinding of extremely small sample quantities, primarily in the biological field 1 mm
  • Additional Information

    The specified ball filling per bowl is the minimum quantity and should possibly be increased depending on the material properties. The useful capacity depends on the type of material. In exceptional cases, the number of grinding balls can be reduced by up to 15 %. However, increased abrasion should be expected. In general, smaller grinding balls achieve finer grinding results.

    Normally, grinding bowls and balls of the same material are used. In principle, the grinding bowl materials must be harder than the material to be ground. Important: Pay attention to the specified useful capacity as this is not identical to the bowl volume!

    It may also be useful to work here with grinding balls ≤ 3 mm diameter. We have not listed these here because we would like to advise you regarding your application. Please contact Mr. Benes our laboratory supervisor.

Grinding balls made different materials in various sizes for Fritsch laboratory mills for different applications

For achieving best grinding result grinding balls are available in ≤ 3 mm - 15 mm diameters and in 2 different materials, thus directly preventing contamination of the samples as a result of undesired abrasion. The 5 ml PTFE bowl is especially suited for biotechnology applications. The recommended number of balls per grinding bowl can be found in the selection aid.

SELECT GRINDING BALL DIAMETER

GRINDING BALLS 15 MM DIAMETER FOR GRINDING BOWL 15 ML, 10 ML

zirconium oxide - ZrO2
N.º 55.0150.27
Grinding ball zirconium oxide, 15 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples


ANÁLISE INDICATIVA
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
N.º 55.0150.09
Grinding ball hardened, stainless steel, 15 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: medium-hard, brittle samples


ANÁLISE INDICATIVA
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data

GRINDING BALLS 10 MM DIAMETER FOR GRINDING BOWL 15 ML, 10 ML, 5 ML

zirconium oxide - ZrO2
N.º 55.0100.27
Grinding ball zirconium oxide, 10 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples


ANÁLISE INDICATIVA
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
N.º 55.0100.09
Grinding ball hardened, stainless steel, 10 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples


ANÁLISE INDICATIVA
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data

GRINDING BALLS 5 MM DIAMETER FOR GRINDING BOWL 15 ML, 10 ML, 5 ML

zirconium oxide - ZrO2
N.º 55.0050.27
Grinding ball zirconium oxide, 5 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
100 grinding balls made of zirconium oxide with 5 mm dia. weigh approx. 38 g.
With the weight information, the high number of balls per grinding bowl can be determined by weighing.


ANÁLISE INDICATIVA
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
N.º 55.0050.09
Grinding ball hardened, stainless steel, 5 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
100 grinding balls made of hardened, stainless steel with 5 mm dia. weigh approx. 52 g.
With the weight information, the high number of balls per grinding bowl can be determined by weighing.


ANÁLISE INDICATIVA
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data

GRINDING BALLS 1 MM DIAMETER FOR SINGLE-USE TUBES

1 mm dia. zirconium oxide ZrO2
N.º 55.0010.27
Grinding balls zirconium oxide 1 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 1 mm dia. are packed in 100 g units and must be weight out. In the selection aid you can find the required mass per grinding bowl.


ANÁLISE INDICATIVA
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
1 mm dia. hardened, stainless steel - Fe - Cr
N.º 55.0010.09
Grinding balls hardened, stainless steel 1 mm dia. (100 g pack)

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Grinding balls made of hardened, stainless steel with 1 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANÁLISE INDICATIVA
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data

Certification

IQ/OQ documentation for utilization for support of instrument qualification in the quality management system for the Mini-Mill

IQ/OQ documentation for the independent utilization for the support of instrument qualification in the quality management system for the Mini-Mill PULVERISETTE 23.





Please select certification

certification

IQ/OQ documentation (questionnaire format - implementation by customer)
N.º 96.0290.00
IQ/OQ documentation (questionnaire format - implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Mini-Mill PULVERISETTE 23.


Nº de encomenda
23.1000.00
Jessica Seifert
FRITSCH GmbH - Milling and Sizing
Industriestrasse 8
55743 Idar-Oberstein
Telefone +49 67 84 70 0

Banco de dados dos protocolos de moagem

Test now

MOAGEM DE TESTE GRATUITA

Envie-nos a sua amostra e nós efetuamos uma moagem de teste - Nós enviamos-lhe um protocolo personalizado de moagem.
