Planetary Micro Mill

PULVERISETTE 7

premium line

Nº de encomenda
07.5000.00
Acessórios

Please note: For the Planetary Micro Mill PULVERISETTE 7 premium line, you require at least 2 grinding bowls of your choice and the corresponding number of grinding balls. The grinding bowl material must also be harder than the material to be ground. In normal cases, grinding bowls and balls of the same material are used. To shorten the grinding time, grinding bowls and balls with a higher density and correspondingly higher impact energy can be used. Please take note of the useful capacity, this is not identical with the bowl volume!

GRINDING BOWLS

Ajuda de seleção

  • Material data for grinding bowls / balls

    Material Main component of the material Density g/cm³ Abrasion resistance Used for grinding material
    Agate SiO2 2.65 good soft to medium-hard samples
    Sintered corundum Al2O3 (99.7%) 3.8 fairly good medium-hard, fibrous samples
    Silicon nitride Si3N4 3.25 excellent abrasive samples, metal-free grinding
    Zirconium oxide ZrO2 5.7 very good fibrous, abrasive samples
    Hardened, stainless steel Fe – Cr 7.7 good hard, medium-hard, brittle samples
    Hardmetal tungsten carbide WC 14.3 very good hard, abrasive samples
  • Recommended number of grinding balls per bowl

    Grinding balls ≥ 5 mm
    Recommended number of balls per bowl
    Grinding bowl/
    Useful capacity (grinding material)
    20 ml
    1 – 9 ml
    45 ml
    3 – 20 ml
    80 ml
    10 - 30 ml
    Balls diameter
    20 mm 5
    15 mm 7 10
    10 mm 10 18 25
    5 mm 80 180 250
    Grinding balls ≤ 3 mm
    Recommended ball mass per bowl in grams
    Grinding bowl/
    Useful capacity (grinding material)
    20 ml
    1 – 9 ml
    45 ml
    3 – 20 ml
    80 ml
    10 - 30 ml
    Material
    Zirconium oxide 30 g 70 g 100 g
    Hardened, stainless steel 40 g 90 g 150 g
    Hardmetal tungsten carbide 80 g 200 g 300 g
  • Additional Information

    Grinding balls with diameter 3 mm and smaller must be weighed out. The above table provides you with the required mass per grinding bowl.

    The specified ball filling per bowl is the minimum quantity and should possibly be increased depending on the material properties. The useful capacity depends on the type of material. In exceptional cases, the number of grinding balls can be reduced by up to 15 %. However, increased abrasion should be expected. In general, smaller grinding balls achieve finer grinding results.

    In normal cases, grinding bowls and balls of the same material are used. To shorten the grinding time, grinding bowls and balls with a higher density and correspondingly higher impact energy can be used.

Please select 2 grinding bowls, which are offered in the sizes 20 ml, 45 ml and 80 ml to perfectly match your sample volume. The useful capacity of the grinding bowls can be found in the selection aid. All grinding bowls of the FRITSCH premium line are cased in stainless steel, have a label and the same inner diameter regardless of their volume.
For the best grinding results in each individual case, all grinding bowls are available in 6 different materials, thus directly preventing contamination of the samples as a result of undesired abrasion.

SELECT GRINDING BOWL VOLUME

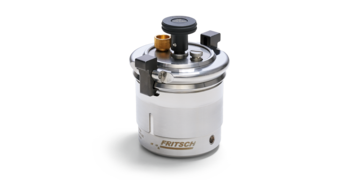

GRINDING BOWLS 80 ML VOLUME

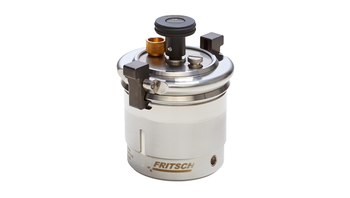

agate - SiO2 - with steel casing
N.º 50.9620.00
agate with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 80 ml
Useful capacity: 10 … 30 ml
Weight net: 0.870 kg
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ANÁLISE INDICATIVA
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
sintered corundum - 99.7% Al2O3 - with steel casing
N.º 50.9630.00
sintered corundum with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 80 ml
Useful capacity: 10 … 30 ml
Weight net: 0.940 kg
General material specification:
Material: sintered corundum 1 - 99.7 % Al2O3
Abrasion resistance: fairly good
Suitable for: medium-hard, fibrous samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ANÁLISE INDICATIVA
General specifications
MaterialSintered corundum 1 – Al2O3
ISO/EN/DIN code
Chemical composition
ElementShare %
Aluminium oxide – Al2O399.651
Silicon oxide – SiO20.257
Calcium oxide – CaO0.081
Other0.011
Physical and mechanical properties
Density3.8 g/cm³
Hardness18.000N/mm² (Vickers HV 0.5)


Explanations on hardness data
silicon nitride - Si3N4 - with steel casing
N.º 50.9670.00
silicon nitride with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 80 ml
Useful capacity: 10 … 30 ml
Weight net: 0.900 kg
General material specification:
Material: silicon nitride - Si3N4
Abrasion resistance: excellent
Suitable for: abrasive samples, metal-free grinding
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ANÁLISE INDICATIVA
General specifications
MaterialSilicon nitride - Si3N4
ISO/EN/DIN codeSNCB5
Chemical composition
ElementShare %
Al2 O3 Y2 O39
Si3 N491
Physical and mechanical properties
Density3.25 g/cm³
Hardness91.1 HRA


Explanations on hardness data
zirconium oxide - ZrO2 - with steel casing
N.º 50.9660.00
zirconium oxide with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 80 ml
Useful capacity: 10 … 30 ml
Weight net: 1.050 kg
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ANÁLISE INDICATIVA
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr - with steel casing
N.º 50.9650.00
hardened, stainless steel with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 80 ml
Useful capacity: 10 … 30 ml
Weight net: 1.150 kg
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ANÁLISE INDICATIVA
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - with steel casing
N.º 50.9640.00
hardmetal tungsten carbide with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 80 ml
Useful capacity: 10 … 30 ml
Weight net: 1.580 kg
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ANÁLISE INDICATIVA
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

GRINDING BOWLS 45 ML VOLUME

agate - SiO2 - with steel casing
N.º 50.9720.00
agate with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 0.930 kg
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ANÁLISE INDICATIVA
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
sintered corundum - 99.7% Al2O3 - with steel casing
N.º 50.9730.00
sintered corundum with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 0.990 kg
General material specification:
Material: sintered corundum 1 - 99.7 % Al2O3
Abrasion resistance: fairly good
Suitable for: medium-hard, fibrous samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ANÁLISE INDICATIVA
General specifications
MaterialSintered corundum 1 – Al2O3
ISO/EN/DIN code
Chemical composition
ElementShare %
Aluminium oxide – Al2O399.651
Silicon oxide – SiO20.257
Calcium oxide – CaO0.081
Other0.011
Physical and mechanical properties
Density3.8 g/cm³
Hardness18.000N/mm² (Vickers HV 0.5)


Explanations on hardness data
silicon nitride - Si3N4 - with steel casing
N.º 50.9770.00
silicon nitride with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 0.960 kg
General material specification:
Material: silicon nitride - Si3N4
Abrasion resistance: excellent
Suitable for: abrasive samples, metal-free grinding
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ANÁLISE INDICATIVA
General specifications
MaterialSilicon nitride - Si3N4
ISO/EN/DIN codeSNCB5
Chemical composition
ElementShare %
Al2 O3 Y2 O39
Si3 N491
Physical and mechanical properties
Density3.25 g/cm³
Hardness91.1 HRA


Explanations on hardness data
zirconium oxide - ZrO2 - with steel casing
N.º 50.9760.00
zirconium oxide with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 1.070 kg
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.

When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ANÁLISE INDICATIVA
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr - with steel casing
N.º 50.9750.00
hardened, stainless steel with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 1.150 kg
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ANÁLISE INDICATIVA
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - with steel casing
N.º 50.9740.00
hardmetal tungsten carbide with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 1.470 kg
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.

When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ANÁLISE INDICATIVA
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

GRINDING BOWLS 20 ML VOLUME

agate - SiO2 - with steel casing
N.º 50.9820.00
agate with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 20 ml
Useful capacity: 1 … 9 ml
Weight net: 1.010 kg
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ANÁLISE INDICATIVA
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
sintered corundum - 99.7% Al2O3 - with steel casing
N.º 50.9830.00
sintered corundum with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 20 ml
Useful capacity: 1 … 9 ml
Weight net: 1.050 kg
General material specification:
Material: sintered corundum 1 - 99.7 % Al2O3
Abrasion resistance: fairly good
Suitable for: medium-hard, fibrous samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ANÁLISE INDICATIVA
General specifications
MaterialSintered corundum 1 – Al2O3
ISO/EN/DIN code
Chemical composition
ElementShare %
Aluminium oxide – Al2O399.651
Silicon oxide – SiO20.257
Calcium oxide – CaO0.081
Other0.011
Physical and mechanical properties
Density3.8 g/cm³
Hardness18.000N/mm² (Vickers HV 0.5)


Explanations on hardness data
silicon nitride - Si3N4 - with steel casing
N.º 50.9870.00
silicon nitride with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 20 ml
Useful capacity: 1 … 9 ml
Weight net: 1.030 kg
General material specification:
Material: silicon nitride - Si3N4
Abrasion resistance: excellent
Suitable for: abrasive samples, metal-free grinding
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ANÁLISE INDICATIVA
General specifications
MaterialSilicon nitride - Si3N4
ISO/EN/DIN codeSNCB5
Chemical composition
ElementShare %
Al2 O3 Y2 O39
Si3 N491
Physical and mechanical properties
Density3.25 g/cm³
Hardness91.1 HRA


Explanations on hardness data
zirconium oxide - ZrO2 - with steel casing
N.º 50.9860.00
zirconium oxide with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 20 ml
Useful capacity: 1 … 9 ml
Weight net: 1.100 kg
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ANÁLISE INDICATIVA
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr - with steel casing
N.º 50.9850.00
hardened, stainless steel with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 20 ml
Useful capacity: 1 … 9 ml
Weight net: 1.150 kg
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ANÁLISE INDICATIVA
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - with steel casing
N.º 50.9840.00
hardmetal tungsten carbide with steel casing, for PULVERISETTE 7 <i>premium line</i>

Grinding bowl with lid, seal ring and label
Grinding bowl volume: 20 ml
Useful capacity: 1 … 9 ml
Weight net: 1.390 kg
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ANÁLISE INDICATIVA
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

REPLACEMENT SEAL RINGS FOR GRINDING BOWLS PULVERISETTE 7 premium line

replacement seal ring Silicone 57.5 x 46.5 x 2 mm for agate grinding bowls premium line 80 ml, 45 ml, 20 ml
N.º 84.0347.15
replacement seal ring Silicone 57.5 x 46.5 x 2 mm for agate grinding bowls <i>premium line</i> 80 ml, 45 ml, 20 ml

Replacement seal ring made of silicone 57.5 x 48 x 2 mm for agate grinding bowls  premium line  80 ml, 45 ml, 20 ml volume.
With a fixed flat seal in the lid, the premium line grinding bowl is so tightly sealed that even grinding in suspension without an additional seal is absolutely smooth and problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ANÁLISE INDICATIVA
General specifications
MaterialSilicone
Chemical combination of
Element
Silicon - Si
Chloride - Cl
Carbon - C
Hydrogen - H
Oxygen - O
Physical and mechanical properties
Density1.1 g/cm³
Hardness50 shore A


Explanations on hardness data
replacement seal ring Silicone 57.5 x 48 x 2 mm for all other premium line grinding bowls 80 ml, 45 ml, 20 ml volume
N.º 84.0342.15
replacement seal ring Silicone 57.5 x 48 x 2 mm for all other <i>premium line</i> grinding bowls 80 ml, 45 ml, 20 ml volume

Replacement seal ring made of silicone 57.5 x 48 x 2 mm for all other premium line grinding bowls 80 ml, 45 ml, 20 ml volume.
With a fixed flat seal in the lid, the premium line grinding bowl is so tightly sealed that even grinding in suspension without an additional seal is absolutely smooth and problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton (Article No. 84.0341.15) because they have a much higher chemical resistance.


ANÁLISE INDICATIVA
General specifications
MaterialSilicone
Chemical combination of
Element
Silicon - Si
Chloride - Cl
Carbon - C
Hydrogen - H
Oxygen - O
Physical and mechanical properties
Density1.1 g/cm³
Hardness50 shore A


Explanations on hardness data
replacement seal ring Viton 57.5 x 48 x 2 mm for all premium line grinding bowls 80 ml, 45 ml, 20 ml volume
N.º 84.0341.15
replacement seal ring Viton 57.5 x 48 x 2 mm for all <i>premium line</i> grinding bowls 80 ml, 45 ml, 20 ml volume

Replacement seal ring made of Viton 57.5 x 48 x 2 mm,  for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume.
Due to a fixed flat seal in the lid, the premium line grinding bowl is so tightly sealed that even grinding in suspension without an additional seal is absolutely smooth and problem-free.
All grinding bowls for the Planetary Micro Mill PULVERISETTE 7 premium line are delivered - as a standard – with a silicone seal ring. When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal rings made of Viton, because they have a much higher chemical resistance.


ANÁLISE INDICATIVA
General specifications
MaterialViton
Chemical composition
ElementShare %
Fluorine - F66
Carbon - C34
Physical and mechanical properties
Density1.84 g/cm³
Hardness75 shore A


Explanations on hardness data

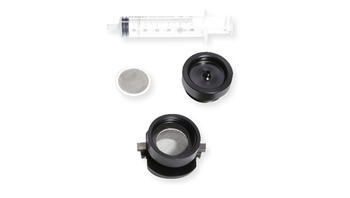

EMPTYING DEVICE AND COUNTERWEIGHT

special emptying device for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume
N.º 50.9900.00
special emptying device for all grinding bowls <em>premium line</em> 80 ml, 45 ml, 20 ml volume

The emptying device for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume - regardless of the grinding bowl material - enables a quick and easy separation of grinding balls and suspension after the grinding process.


The emptying device can be used for grinding bowls with normal lid as well as for gassing lids.


Directions emptying device

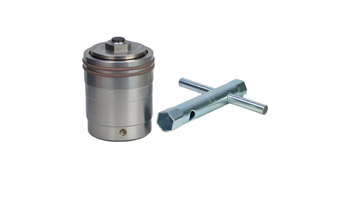

counterweight for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume
N.º 50.9890.00
counterweight for all grinding bowls <em>premium line</em> 80 ml, 45 ml, 20 ml volume

Essential for weight compensation, if only one grinding bowl is used for grinding.


GRINDING BALLS

Ajuda de seleção

  • Material data for grinding bowls / balls

    Material Main component of the material Density g/cm³ Abrasion resistance Used for grinding material
    Agate SiO2 2.65 good soft to medium-hard samples
    Sintered corundum Al2O3 (99.7%) 3.8 fairly good medium-hard, fibrous samples
    Silicon nitride Si3N4 3.25 excellent abrasive samples, metal-free grinding
    Zirconium oxide ZrO2 5.7 very good fibrous, abrasive samples
    Hardened, stainless steel Fe – Cr 7.7 good hard, medium-hard, brittle samples
    Hardmetal tungsten carbide WC 14.3 very good hard, abrasive samples
  • Size of the grinding balls

    Type of sample material Suitable ball diameter
    Hard samples with a maximum feed size of ≤ 5 mm 15 mm / 20 mm
    Average feed size of 0.5 - 1 mm 15 mm / 10 mm
    Fine material 0.1 - 0.5 mm 10 mm or smaller
    Very fine material < 0.1 mm 3 mm and smaller
    Homogenisation of dry or liquid samples 10 mm or smaller
  • Recommended number of grinding balls per bowl

    Grinding balls ≥ 5 mm
    Recommended number of balls per bowl
    Grinding bowl/
    Useful capacity (grinding material)
    20 ml
    1 – 9 ml
    45 ml
    3 – 20 ml
    80 ml
    10 - 30 ml
    Balls diameter
    20 mm 5
    15 mm 7 10
    10 mm 10 18 25
    5 mm 80 180 250
    Grinding balls ≤ 3 mm
    Recommended ball mass per bowl in grams
    Grinding bowl/
    Useful capacity (grinding material)
    20 ml
    1 – 9 ml
    45 ml
    3 – 20 ml
    80 ml
    10 - 30 ml
    Material
    Zirconium oxide 30 g 70 g 100 g
    Hardened, stainless steel 40 g 90 g 150 g
    Hardmetal tungsten carbide 80 g 200 g 300 g
  • Additional Information

    Grinding balls with diameter 3 mm and smaller must be weighed out. The above table provides you with the required mass per grinding bowl.

    The specified ball filling per bowl is the minimum quantity and should possibly be increased depending on the material properties. The useful capacity depends on the type of material. In exceptional cases, the number of grinding balls can be reduced by up to 15 %. However, increased abrasion should be expected. In general, smaller grinding balls achieve finer grinding results.

    In normal cases, grinding bowls and balls of the same material are used. To shorten the grinding time, grinding bowls and balls with a higher density and correspondingly higher impact energy can be used.

For achieving best grinding results grinding balls are available in 0.1 - 20 mm diameters and in 7 different materials, thus directly preventing contamination of the samples as a result of undesired abrasion. The recommended number of balls per grinding bowl can be found in the selection aid.

SELECT GRINDING BALL DIAMETER

GRINDING BALLS 20 MM DIAMETER FOR GRINDING BOWL 80 ML

agate - SiO2 - polished
N.º 55.0200.05
Grinding ball agate 20 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample


ANÁLISE INDICATIVA
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
sintered corundum - 99.7% Al2O3
N.º 55.0200.06
Grinding ball sintered corundum, 20 mm dia.

General material specification:
Material: sintered corundum 1 - 99.7 % Al2O3
Abrasion resistance: fairly good
Suitable for: medium-hard, fibrous samples


ANÁLISE INDICATIVA
General specifications
MaterialSintered corundum 1 – Al2O3
ISO/EN/DIN code
Chemical composition
ElementShare %
Aluminium oxide – Al2O399.651
Silicon oxide – SiO20.257
Calcium oxide – CaO0.081
Other0.011
Physical and mechanical properties
Density3.8 g/cm³
Hardness18.000N/mm² (Vickers HV 0.5)


Explanations on hardness data
silicon nitride - Si3N4
N.º 55.0200.31
Grinding ball silicon nitride, 20 mm dia.

General material specification:
Material: silicon nitride - Si3N4
Abrasion resistance: excellent
Suitable for: abrasive samples, metal-free grinding


ANÁLISE INDICATIVA
General specifications
MaterialSilicon nitride - Si3N4
ISO/EN/DIN codeSNCB5
Chemical composition
ElementShare %
Al2 O3 Y2 O312.5
Si3 N486.5
Other1.00
Physical and mechanical properties
Density3.25 g/cm³
Hardness91.1 HRA


Explanations on hardness data
zirconium oxide - ZrO2
N.º 55.0200.27
Grinding ball zirconium oxide, 20 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples


ANÁLISE INDICATIVA
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
N.º 55.0200.09
Grinding ball hardened, stainless steel, 20 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples


ANÁLISE INDICATIVA
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC
N.º 55.0200.08
Grinding ball hardmetal tungsten carbide, 20 mm dia.

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples


ANÁLISE INDICATIVA
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

GRINDING BALLS 15 MM DIAMETER FOR GRINDING BOWL 80 ML, 45 ML

agate - SiO2 - polished
N.º 55.0150.05
Grinding ball agate 15 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample


ANÁLISE INDICATIVA
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
sintered corundum - 99.7% Al2O3
N.º 55.0150.06
Grinding ball sintered corundum, 15 mm dia.

General material specification:
Material: sintered corundum 1 - 99.7 % Al2O3
Abrasion resistance: fairly good
Suitable for: medium-hard, fibrous samples


ANÁLISE INDICATIVA
General specifications
MaterialSintered corundum 1 – Al2O3
ISO/EN/DIN code
Chemical composition
ElementShare %
Aluminium oxide – Al2O399.651
Silicon oxide – SiO20.257
Calcium oxide – CaO0.081
Other0.011
Physical and mechanical properties
Density3.8 g/cm³
Hardness18.000N/mm² (Vickers HV 0.5)


Explanations on hardness data
silicon nitride - Si3N4
N.º 55.0150.31
Grinding ball silicon nitride, 15 mm dia.

General material specification:
Material: silicon nitride - Si3N4
Abrasion resistance: excellent
Suitable for: abrasive samples, metal-free grinding


ANÁLISE INDICATIVA
General specifications
MaterialSilicon nitride - Si3N4
ISO/EN/DIN codeSNCB5
Chemical composition
ElementShare %
Al2 O3 Y2 O312.5
Si3 N486.5
Other1.00
Physical and mechanical properties
Density3.25 g/cm³
Hardness91.1 HRA


Explanations on hardness data
zirconium oxide - ZrO2
N.º 55.0150.27
Grinding ball zirconium oxide, 15 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples


ANÁLISE INDICATIVA
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
N.º 55.0150.09
Grinding ball hardened, stainless steel, 15 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: medium-hard, brittle samples


ANÁLISE INDICATIVA
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC
N.º 55.0150.08
Grinding ball hardmetal tungsten carbide, 15 mm dia.

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples


ANÁLISE INDICATIVA
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

GRINDING BALLS 10 MM DIAMETER FOR GRINDING BOWL 80 ML, 45 ML, 20 ML

agate - SiO2 - polished
N.º 55.0100.05
Grinding ball agate 10 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
Grinding balls made of agate with 10 mm dia. are also recommended as sieving aid for dry sieving of material with a high proportion of fine particles.
Recommended number per sieve: 10 pieces.


ANÁLISE INDICATIVA
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
sintered corundum - 99.7% Al2O3
N.º 55.0100.06
Grinding ball sintered corundum, 10 mm dia.

General material specification:
Material: sintered corundum 1 - 99.7 % Al2O3
Abrasion resistance: fairly good
Suitable for: medium-hard, fibrous samples


ANÁLISE INDICATIVA
General specifications
MaterialSintered corundum 1 – Al2O3
ISO/EN/DIN code
Chemical composition
ElementShare %
Aluminium oxide – Al2O399.651
Silicon oxide – SiO20.257
Calcium oxide – CaO0.081
Other0.011
Physical and mechanical properties
Density3.8 g/cm³
Hardness18.000N/mm² (Vickers HV 0.5)


Explanations on hardness data
silicon nitride - Si3N4
N.º 55.0100.31
Grinding ball silicon nitride, 10 mm dia.

General material specification:
Material: silicon nitride - Si3N4
Abrasion resistance: excellent
Suitable for: abrasive samples, metal-free grinding


ANÁLISE INDICATIVA
General specifications
MaterialSilicon nitride - Si3N4
ISO/EN/DIN codeSNCB5
Chemical composition
ElementShare %
Al2 O3 Y2 O312.5
Si3 N486.5
Other1.00
Physical and mechanical properties
Density3.25 g/cm³
Hardness91.1 HRA


Explanations on hardness data
zirconium oxide - ZrO2
N.º 55.0100.27
Grinding ball zirconium oxide, 10 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples


ANÁLISE INDICATIVA
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
N.º 55.0100.09
Grinding ball hardened, stainless steel, 10 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples


ANÁLISE INDICATIVA
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC
N.º 55.0100.08
Grinding ball hardmetal tungsten carbide, 10 mm dia.

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples


ANÁLISE INDICATIVA
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

GRINDING BALLS 5 MM DIAMETER FOR GRINDING BOWL 80 ML, 45 ML, 20 ML

agate - SiO2 - polished
N.º 55.0050.05
Grinding ball agate, 5 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
100 grinding balls made of agate with 5 mm dia. weigh approx. 17 g. With the weight information, the high number of balls per grinding bowl can be determined by weighing.
Grinding balls made of agate with 5 mm dia. are also recommended as sieving aid for dry sieving of material with a high proportion of fine particles.
Recommended number per sieve: 15 pieces.


ANÁLISE INDICATIVA
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2
N.º 55.0050.27
Grinding ball zirconium oxide, 5 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
100 grinding balls made of zirconium oxide with 5 mm dia. weigh approx. 38 g.
With the weight information, the high number of balls per grinding bowl can be determined by weighing.


ANÁLISE INDICATIVA
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
N.º 55.0050.09
Grinding ball hardened, stainless steel, 5 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
100 grinding balls made of hardened, stainless steel with 5 mm dia. weigh approx. 52 g.
With the weight information, the high number of balls per grinding bowl can be determined by weighing.


ANÁLISE INDICATIVA
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC
N.º 55.0050.08
Grinding ball hardmetal tungsten carbide, 5 mm dia.

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
100 grinding balls made of hardmetal tungsten carbide with 5 mm dia. weigh approx. 97 g. With the weight information, the high number of balls per grinding bowl can be determined by weighing.


ANÁLISE INDICATIVA
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

GRINDING BALLS ≤ 3 MM DIAMETER FOR GRINDING BOWL 80 ML, 45 ML, 20 ML

3 mm dia. zirconium oxide ZrO2
N.º 55.0030.27
Grinding balls zirconium oxide 3 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 3 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANÁLISE INDICATIVA
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
2 mm dia. zirconium oxide ZrO2
N.º 55.0020.27
Grinding balls zirconium oxide 2 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 2 mm dia. are packed in 100 g units and must be weight out. In the selection aid you can find the required mass per grinding bowl.


ANÁLISE INDICATIVA
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
1.5 mm dia. zirconium oxide ZrO2
N.º 55.0015.27
Grinding balls zirconium oxide 1.5 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 1.5 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANÁLISE INDICATIVA
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
1 mm dia. zirconium oxide ZrO2
N.º 55.0010.27
Grinding balls zirconium oxide 1 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 1 mm dia. are packed in 100 g units and must be weight out. In the selection aid you can find the required mass per grinding bowl.


ANÁLISE INDICATIVA
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
0.5 mm dia. zirconium oxide ZrO2
N.º 55.0005.27
Grinding balls zirconium oxide 0.5 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 0.5 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANÁLISE INDICATIVA
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
0.1 mm dia. zirconium oxide ZrO2
N.º 55.0001.27
Grinding balls zirconium oxide 0.1 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 0.1 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANÁLISE INDICATIVA
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
3 mm dia. hardened, stainless steel - Fe - Cr
N.º 55.0030.09
Grinding balls hardened, stainless steel 3 mm dia. (100 g pack)

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Grinding balls made of hardened, stainless steel with 3 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANÁLISE INDICATIVA
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
1 mm dia. hardened, stainless steel - Fe - Cr
N.º 55.0010.09
Grinding balls hardened, stainless steel 1 mm dia. (100 g pack)

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Grinding balls made of hardened, stainless steel with 1 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANÁLISE INDICATIVA
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
3 mm dia. hardmetal tungsten carbide - WC
N.º 55.0030.08
Grinding balls hardmetal tungsten carbide 3 mm dia. (100 g pack)

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Grinding balls made of hardmetal tungsten carbide with 3 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANÁLISE INDICATIVA
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data
1.6 mm dia. hardmetal tungsten carbide - WC
N.º 55.0016.08
Grinding balls hardmetal tungsten carbide 1.6 mm dia. (100 g pack)

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Grinding balls made of hardmetal tungsten carbide with 1.6 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANÁLISE INDICATIVA
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data
0.6 mm dia. hardmetal tungsten carbide - WC
N.º 55.0006.08
Grinding balls hardmetal tungsten carbide 0.6 mm dia. (100 g pack)

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Grinding balls made of hardmetal tungsten carbide with 0.6 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


ANÁLISE INDICATIVA
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

SPECIAL ACCESSORIES

The software MillControl enables the automatic control of the Planetary Micro Mill PULVERISETTE 7 premium line and validation of the grinding process. The actual rotational speed and power consumption are checked and documented. With the utilization of 2 EASY GTM grinding bowls with special lid and transmitter you turn your PULVERISETTE 7 premium line into an analytical measuring system for visualizing pressure and temperature during the grinding process.
For quickly and safely grinding in inert gas and for mechanical alloying premium line gassing lids are recommended.
A certificate for IQ/OQ documentation is also available.

SELECT SPECIAL ACCESSORIES

SOFTWARE MILLCONTROL

Software MillControl for Windows
N.º 83.5605.00
for Windows for automatic control of the mill and validation of the grinding process

The software MillControl enables the automatic control of the Planetary Micro Mill PULVERISETTE 7 and Planetary Mill PULVERISETTE 5 premium line and validation of the grinding process. The actual rotational speed and power consumption are checked and documented. The software is a distinct safety feature, since overpressure and a rise in temperature are avoided and defects on the mill and a sticking of the sample material prevented.

Detailed information on MillControl is available here


EASY GTM - GAS PRESSURE AND TEMPERATURE MEASURING SYSTEM FOR CONTROLLING THE GRINDING PROCESS

Receiver unit - board and software MillControl
N.º 81.0013.00
receiver unit – board and software MillControl

Turn your Planetary Mill PULVERISETTE 5 premium line and Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software.
Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
Especially practical: The receiver unit needs only to be inserted and adjusted just once – the software MillControl via USB only installed once - regardless of the number of EASY GTM-bowls used.
Only one receiver unit with software MillControl has to be ordered. EASY GTM is also available for further grinding bowl volumes on request.


80 ml grinding bowl made of agate - SiO2 - with special lid and transmitter
N.º 50.9040.00
80 ml grinding bowl made of agate with special lid and transmitter

for the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature


Turn your Planetary  Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.


EASY GTM grinding bowls are also available in sintered corundum, silicon nitride, zirconium oxide, stainless steel, hardened steel and hardmetal tungsten carbide with a bowl volume of 80 ml. EASY-GTM is also available for further grinding bowl volumes on request.


Only one receiver unit with software MillControl has to be ordered.


ANÁLISE INDICATIVA
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
80 ml grinding bowl made of sintered corundum - 99.7% Al2O3- with special lid and transmitter
N.º 50.9080.00
80 ml grinding bowl made of sintered corundum with special lid and transmitter

for the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature


Turn your Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.


EASY GTM grinding bowls are also available in agate, silicon nitride, zirconium oxide, stainless steel, hardened steel and hardmetal  tungsten carbide with a bowl volume of 80 ml. EASY-GTM is also available for further grinding bowl volumes on request.


Only one receiver unit with software MillControl has to be ordered.


ANÁLISE INDICATIVA
General specifications
MaterialSintered corundum 1 – Al2O3
ISO/EN/DIN code
Chemical composition
ElementShare %
Aluminium oxide – Al2O399.651
Silicon oxide – SiO20.257
Calcium oxide – CaO0.081
Other0.011
Physical and mechanical properties
Density3.8 g/cm³
Hardness18.000N/mm² (Vickers HV 0.5)


Explanations on hardness data
80 ml grinding bowl made of silicon nitride - Si3N4- with special lid and transmitter
N.º 50.9090.00
80 ml grinding bowl made of silicon nitride with special lid and transmitter

for the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature


Turn your Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.


EASY GTM grinding bowls are also available in agate, sintered corundum, zirconium oxide, stainless steel, hardened steel and hardmetal  tungsten carbide with a bowl volume of 80 ml. EASY-GTM is also available for further grinding bowl volumes on request.


Only one receiver unit with software MillControl has to be ordered.


ANÁLISE INDICATIVA
General specifications
MaterialSilicon nitride - Si3N4
ISO/EN/DIN codeSNCB5
Chemical composition
ElementShare %
Al2 O3 Y2 O39
Si3 N491
Physical and mechanical properties
Density3.25 g/cm³
Hardness91.1 HRA


Explanations on hardness data
80 ml grinding bowl made of zirconium oxide - ZrO2 - with special lid and transmitter
N.º 50.9070.00
80 ml grinding bowl made of zirconium oxide with special lid and transmitter

for the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature


Turn your Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.


EASY GTM grinding bowls are also available in agate, sintered corundum, silicon nitride, stainless steel, hardened steel and hardmetal  tungsten carbide with a bowl volume of 80 ml. EASY-GTM is also available for further grinding bowl volumes on request.


Only one receiver unit with software MillControl has to be ordered.


ANÁLISE INDICATIVA
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
80 ml grinding bowl made of hardened, stainless steel - Fe - Cr - with special lid and transmitter
N.º 50.9050.00
80 ml grinding bowl made of hardened, stainless steel with special lid and transmitter

for the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature


Turn your Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.


EASY GTM grinding bowls are also available in agate, sintered corundum, silicon nitride, zirconium oxide, hardened stainless steel and hardmetal tungsten carbide with a bowl volume of 80 ml. EASY-GTM is also available for further grinding bowl volumes on request.


Only one receiver unit with software MillControl has to be ordered.


ANÁLISE INDICATIVA
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
80 ml grinding bowl made of hardmetal tungsten carbide - WC - with special lid and transmitter
N.º 50.9060.00
80 ml grinding bowl made of hardmetal tungsten carbide with special lid and transmitter

for the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature


Turn your Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.


EASY GTM grinding bowls are also available in agate, sintered corundum, silicon nitride, zirconium oxide, stainless steel and hardened steel with a bowl volume of 80 ml. EASY-GTM is also available for further grinding bowl volumes on request.


Only one receiver unit with software MillControl has to be ordered.


ANÁLISE INDICATIVA
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

ACCESSORIES FOR GRINDING IN INERT GAS AND FOR MECHANICAL ALLOYING - GASSING LID WITH VALVES AND SEAL RING

agate SiO2 - with steel casing
N.º 50.9627.00
agate with steel casing for PULVERISETTE 7 <i>premium line</i>

Agate gassing lid with valves and seal ring for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume for PULVERISETTE 7 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.


ANÁLISE INDICATIVA
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
sintered corundum - 99.7% Al2O3 - with steel casing
N.º 50.9637.00
sintered corundum with steel casing for PULVERISETTE 7 <i>premium line</i>

Sintered corundum gassing lid with valves and seal ring for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume for PULVERISETTE 7 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.


ANÁLISE INDICATIVA
General specifications
MaterialSintered corundum 1 – Al2O3
ISO/EN/DIN code
Chemical composition
ElementShare %
Aluminium oxide – Al2O399.651
Silicon oxide – SiO20.257
Calcium oxide – CaO0.081
Other0.011
Physical and mechanical properties
Density3.8 g/cm³
Hardness18.000N/mm² (Vickers HV 0.5)


Explanations on hardness data
silicon nitride - Si3N4 - with steel casing
N.º 50.9677.00
silicon nitride with steel casing  for PULVERISETTE 7 <i>premium line</i>

Silicon nitride gassing lid with valves and seal ring for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume for PULVERISETTE 7 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.


ANÁLISE INDICATIVA
General specifications
MaterialSilicon nitride - Si3N4
ISO/EN/DIN codeSNCB5
Chemical composition
ElementShare %
Al2 O3 Y2 O39
Si3 N491
Physical and mechanical properties
Density3.25 g/cm³
Hardness91.1 HRA


Explanations on hardness data
zirconium oxide - ZrO2 - with steel casing
N.º 50.9667.00
zirconium oxide with steel casing for PULVERISETTE 7 <i>premium line</i>

Zirconium oxide gassing lid with valves and seal ring for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume for PULVERISETTE 7 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.


ANÁLISE INDICATIVA
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr - with steel casing
N.º 50.9657.00
hardened, stainless steel with steel casing for PULVERISETTE 7 <i>premium line</i>

Hardened, stainless steel gassing lid with valves and seal ring for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume for PULVERISETTE 7 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.


ANÁLISE INDICATIVA
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - with steel casing
N.º 50.9647.00
hardmetal tungsten carbide with steel casing for PULVERISETTE 7 <i>premium line</i>

Hardmetal tungsten carbide gassing lid with valves and seal ring for all grinding bowls premium line 80 ml, 45 ml, 20 ml volume for PULVERISETTE 7 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.


ANÁLISE INDICATIVA
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

ACCESSORIES FOR SINGLE-USE TECHNOLOGY

Grinding bowl made of stainless steel - Fe -Cr
N.º 50.9506.00
grinding bowl made of stainless steelding  with 6 sample glasses 1.5 ml volume

The grinding bowl made of stainless steel with 6 sample glasses 1.5 ml volume is suitable for single-use technology, for example in pharmacy, forensics and pathology, RNA/DNA extraction, bacteriology, chemistry.
Additionally, a set of sample glasses 1.5 ml volume with lids (set = 12 pieces) is available with order no. 83.3165.00.


ANÁLISE INDICATIVA
General specifications
MaterialStainless steel – 1.4057
ISO/EN/DIN codeX17CrNi16-2
AISI code431
Chemical composition
ElementShare %
Iron – Fe77.7–80.8
Carbon – C0.12–0.22
Silicon – Si≤ 1.0
Manganese – Mn≤ 1.5
Chromium – Cr15–17
Nickel – Ni1.5–2.5
Phosphorus – P≤ 0.04
Sulphur – S0.015
Physical and mechanical properties
Density7.7g/cm³
Hardness295 HB


Explanations on hardness data
Set of sample glasses 1.5 ml volume with lids
N.º 83.3165.00
set of sample glasses 1.5 ml volume with lids (set = 12 pieces)

The set of sample glasses 1.5 ml volume with lids (set = 12 pieces) is suitable for single-use technology, for example in pharmacy, forensics and pathology, RNA/DNA extraction, bacteriology, chemistry.
In order to use the sample glasses for your PULVERISETTE 7 premium line, please order the corresponding grinding bowl made of stainless steel, order no. 50.9506.00.


CERTIFICATION

IQ/OQ documentation (questionnaire format - implementation by customer)
N.º 96.0260.00
IQ/OQ documentation (questionnaire format - implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Planetary Micro Mill PULVERISETTE 7 premium line.


Nº de encomenda
07.5000.00
Jessica Seifert
FRITSCH GmbH - Milling and Sizing
Industriestrasse 8
55743 Idar-Oberstein
Telefone +49 67 84 70 0

Banco de dados dos protocolos de moagem

Test now

MOAGEM DE TESTE GRATUITA

Envie-nos a sua amostra e nós efetuamos uma moagem de teste - Nós enviamos-lhe um protocolo personalizado de moagem.
